Beam Shaping Devices

Diaphragm Changer      Double Slit Collimation System      Slit With Laser Targeting      Collimation Guide      Multi Positioning Collimation System      Collimator production

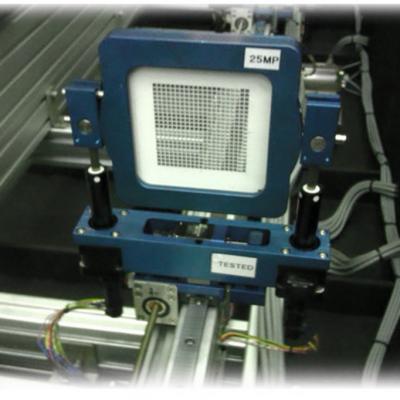

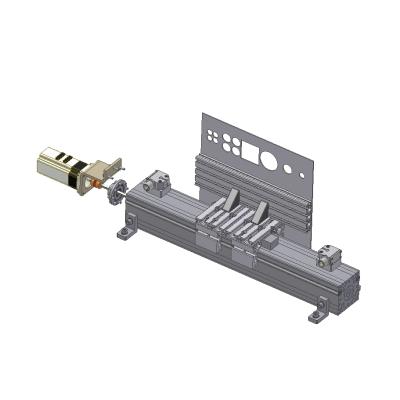

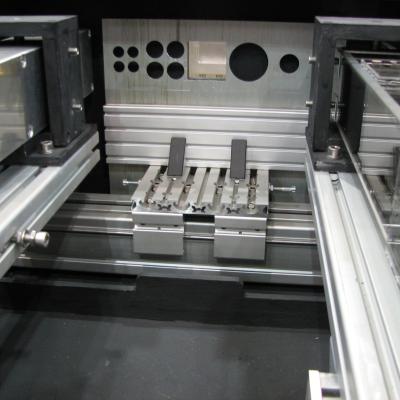

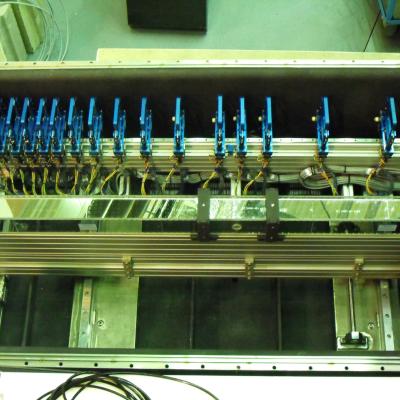

Diaphragm Changer

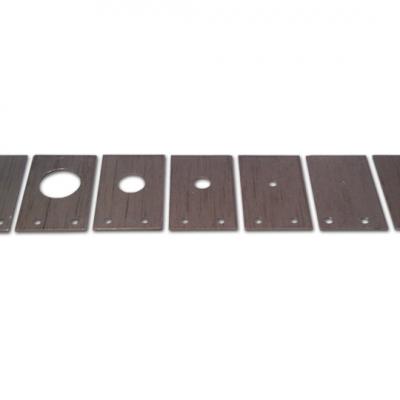

  • Positioning accuracy within ±5 µm

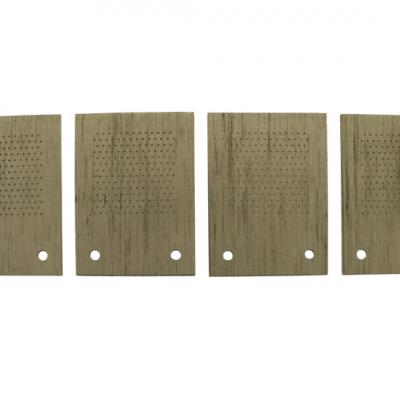

  • 10B / B4C / Al / Cd or sandwich absorbing plate
  • Absorption neutronically tested and certified
  • Variable size, variable apertures, custom designed
  • Designed for air / vacuum / non-magnetic environment
  • Remote controlled
  • Easy integration to existing systems

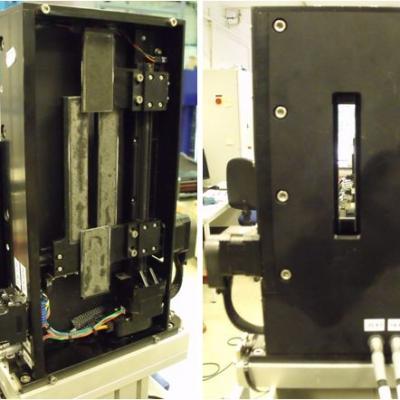

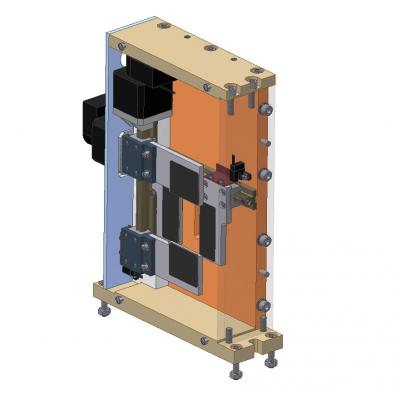

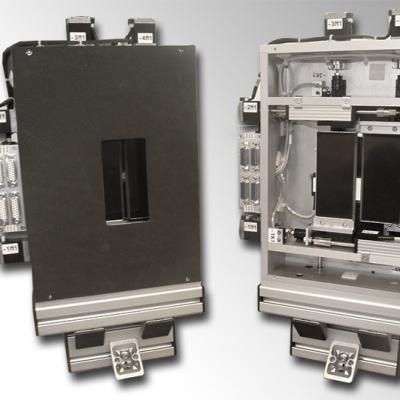

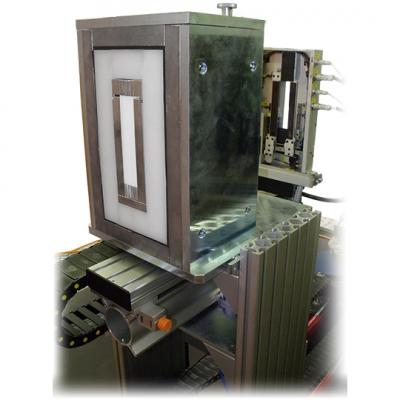

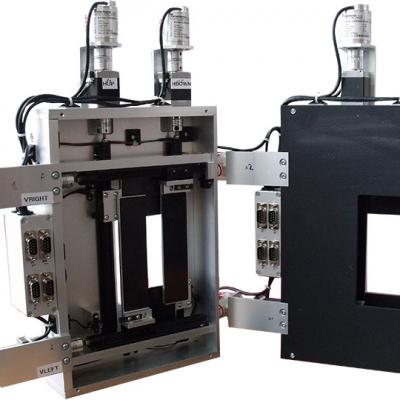

Double Slit Collimation System

  • Accuracy within ±10 µm
  • 10B / B4C / Al / Cd or sandwich absorbing blades
  • Absorption neutronically tested and certified
  • Variable size / Custom design
  • Designed for air / vacuum / non-magnetic environment
  • Remote controlled
  • Easy integration to existing systems

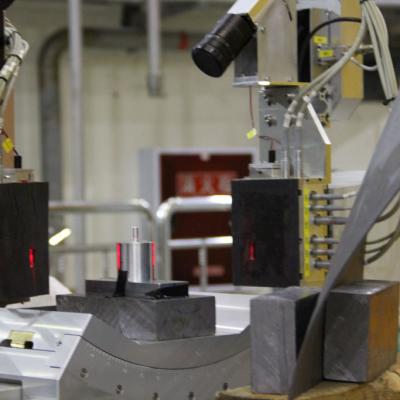

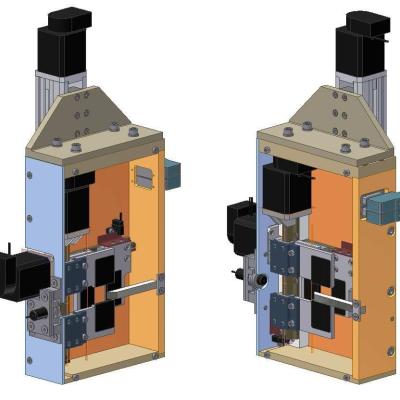

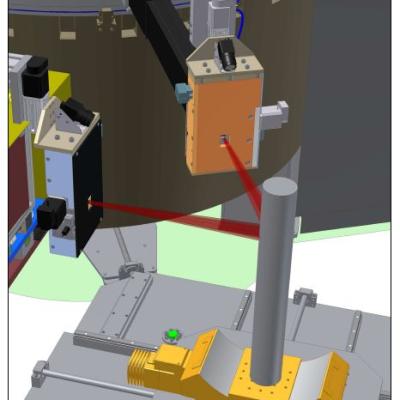

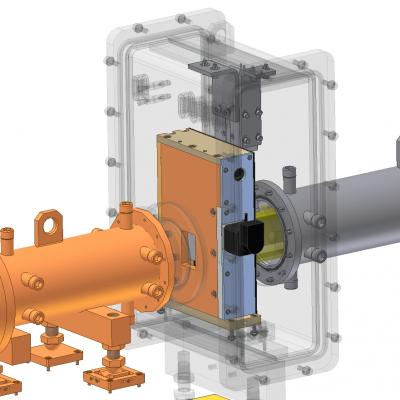

Slit With Laser Targeting

  • Used for sample and / or detector alignment
  • Slit with remotely adjustable aperture. X,Y: 0.1-30 mm (customizable)
  • Compact, high-resolution industrial camera (5.0 MP)
  • Replaceable optics with adjustable focus
  • Red Laser Cross Line Module

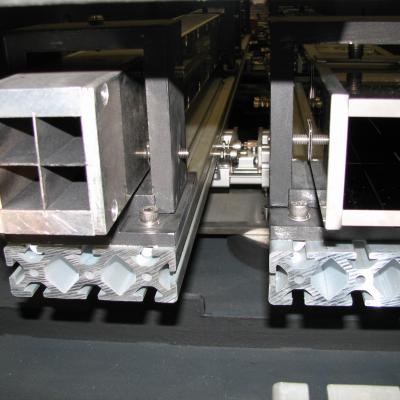

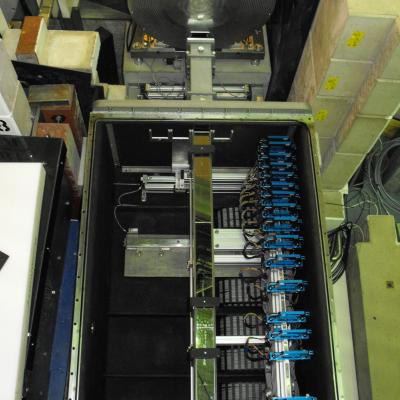

Collimation Guide

  • Supermirror and absorbing inner surfaces option
  • Multi - Beam Collimation guide
  • Variable size, custom designed
  • B4C/Gd absorbing inner surfaces
  • Designed for air / vacuum environment
  • Absorption neutronically tested and certified

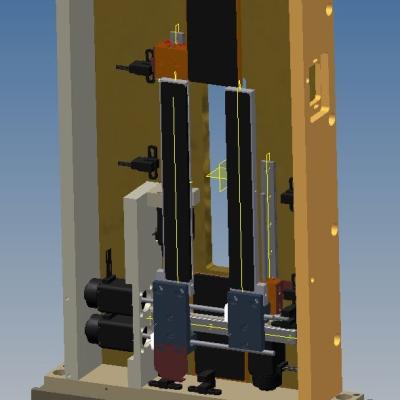

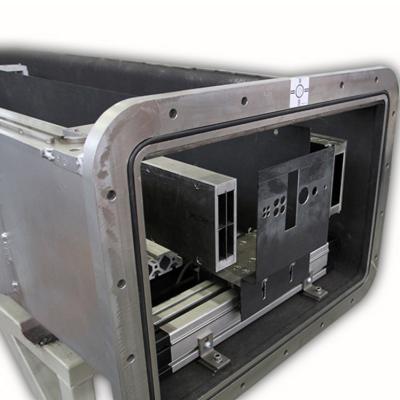

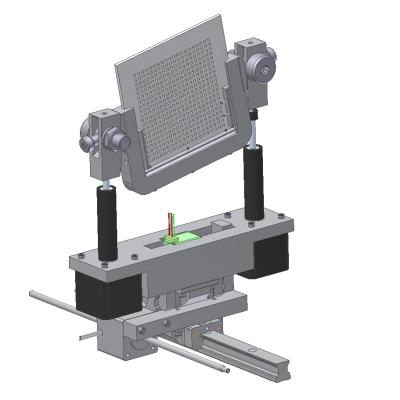

Multi-Positioning Collimation System

  • Accuracy within ±10 µm
  • Four axis (X, Y, Z, tilting) positioning
  • 10B / B4C / Al / Cd or sandwich absorbing blades
  • Absorption neutronically tested
  • Operation under vacuum or in atmospheric pressure
  • Variable size and apertures
  • Remote controlled

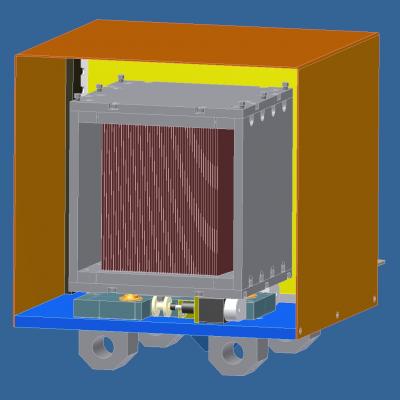

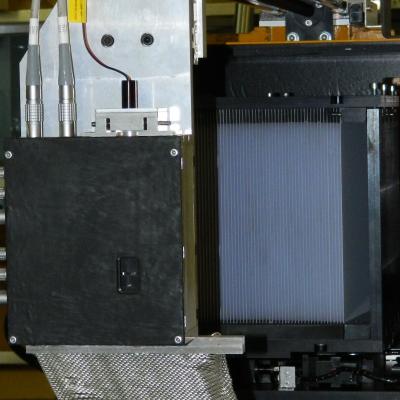

Collimator production

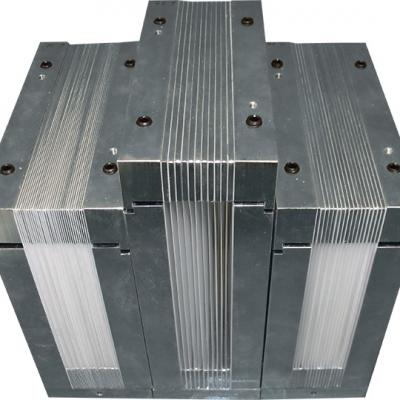

  • Soller Collimators and Radial Collimators
  • Radial Oscillating Collimators with mechanism
  • Optimalization of absorbing element
  • Gd2O3 coated PET or textile glass
  • Collimator blades transmission are neutronically tested
  • Small angle scattering is reduced, certified
  • Controlled blade coating thickness: 10 – 100 micron
  • Both side of blade could be coated
